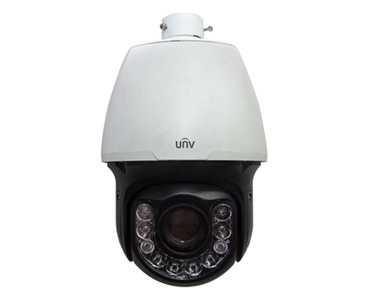

IPC6252SFW-X22U
2MP 22x Starlight Network Full Spectrum PTZ Dome Camera

    Optics

    *           Starlight illumination

    *           Accurate and fast focusing

    *           Full spectrumlight with both white and infrared LED design

    *           Smart IR, up to 200 m (656 ft) IR distance

    *           Up to 120dB WDR(Wide Dynamic Range)

    *           While Light , up to 30m(98ft)

    Compression

    *           Ultra 265,H.265, H.264, MJPEG

    *           Embedded smart algorithm

    *           Triple streams

    *           1080P@60fps Supported

    Network

    *           ONVIF Conformance

    Structure

    *           Innovative snow-removing functionality

    *           More effective heat dissipation system

    *           Intelligent temperature control technology

    *           6 KV surge protection designed for network interface



    IPC6252SFW-X22U

    Camera

    Sensor

    1/1.9", progressive scan, 2.0 megapixel, CMOS

    Lens

    6.5 ~ 143 mm (22x optical zoom) , AF automatic focusing and motorized zoom lens

    Angle of View (H)

    70° (wide) ~ 3.76° (tele)

    Shutter

    Auto/Manual; shutter time: 1/6 s ~ 1/100000 s

    Minimum Illumination

    Colour: 0.001 lux (F1.5, AGC ON)

    0 Lux with IR on

    Iris

    Auto/Manual; F1.5 ~ F3.4

    Day/Night

    IR-cut filter with auto switch (ICR)

    Digital noise reduction

    2D/3D DNR

    S/N

    >52dB

    IR Range

    Up to 200 m (656 ft)

    Defog

    Digital Defog

    WDR

    120dB

    Video

    Video Compression

    Ultra 265,H.265, H.264, MJPEG

    H.264 code profile

    Baseline profile, Main Profile, High Profile

    Frame Rate

    Main Stream:2MP (1920×1080):Max. 60 fps;

    Sub Stream:2MP (1920×1080):Max. 60 fps;

    Third Stream: D1 (720×576): Max. 60 fps

    HLC

    Supported

    BLC

    Supported

    EIS

    Supported

    OSD

    Up to 8 OSDs

    Privacy Mask

    Up to 8 areas

    ROI

    Up to 8 areas

    Motion Detection

    Up to 4 areas

    Smart

    Behavior Detection

    Intrusion, cross line, motion detection, Auto tracking

    Exception Detection

    Audio detection

    Intelligent Identification

    Face detection

    Statistical Analysis

    People counting

    General Function

    Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

    Audio

    Audio Compression

    G.711

    Two-way audio

    Supported

    Suppression

    Supported

    Sampling Rate

    8 KHZ

    Storage

    Edge Storage

    Micro SD, up to 128 GB

    Network Storage

    ANR

    Network

    Protocols

    IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP

    Compatible Integration

    ONVIF(Profile S, Profile G), API

    Pan & Tilt

    Pan Range

    360° (endless)

    Pan Speed

    0.1°/s ~ 240°/s

    Preset speed: 300°/s

    Tilt Range

    –15° ~ +90° (auto reverse)

    Tilt Speed

    0.1° ~ 160°/s

    Preset speed: 240°/s

    Number of Preset

    1024

    Patrol

    Preset patrol, route patrol, recorded patrol

    Home Position

    Supported

    Drag-to-Zoom

    Supported

    Interface

    Audio I/O

    Audio cable

    1 Input: impedance 35 kΩ; amplitude 2 V [p-p]

    1 Output: impedance 600 Ω; amplitude 2 V [p-p]

    Alarm I/O

    2 / 1

    Serial Port

    1 RS485

    Network

    1 RJ45 10M/100M Base-TX Ethernet

    Video Output

    1 BNC, impedance 75 Ω; amplitude 1 V [p-p]

    General

    Power

    24 V AC (Default) ±25%, 24 V DC±25%

    Power consumption:12 ~46W

    Dimensions(ØxH)

    Ø227x359.4 mm (Ø8.9” x 14.2”)

    Weight

    5.4 kg (11.9lb)

    Working Environment

    –40°C ~ +70°C (-40°F ~ 158°F), Humidity:10%~ 95% RH(non-condensing)

    Ingress Protection

    IP66

    ·         Reset Button

    Supported
