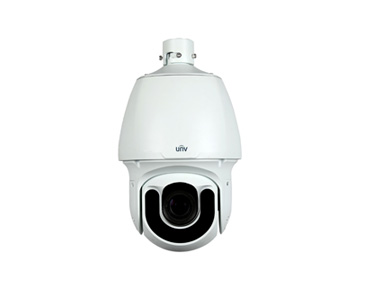

IPC6242SR-X33G-IA
1080P 33X 2MP Auto Tracking PTZ Dome Camera

    Optics

    *           Accurate and fast focusing

    *           33x optical zoom

    *           Optical glass window with higher light transmittance

    *           Smart IR, up to 150 m (492 ft) IR distance

    Compression

    *           H.264 High Profile

    *           Triple streams

    *           Custom OSD

    Intelligent

    *           Auto tracking

    *           Snapshot when a moving object breaks the rules

    Network

    *           ONVIF Conformance

    Structure

    *           Intelligent temperature control technology

    *           Innovative heat dissipation design, 30% higher efficiency

    *           More effective heat dissipation system

    *           6 KV surge protection designed for network interface



    Camera

    IPC6242SR-X33G-IA

    Sensor

    1/2.8", 2 megapixel, progressive scan CMOS

    Focus/Zoom

    4.5 ~ 148.5 mm (33x optical zoom)

    Angle of View (H)

    62° (wide) ~ 3.44° (tele)

    Iris

    Auto/Manual, F1.6 ~ F4.4

    Shutter

    Auto/Manual, 1/6s ~ 1/8000s

    Minimum Illumination

    Color: 0.02 Lux (F1.6, AGC ON)

    0 Lux with IR on

    S/N

    > 52 dB

    Day/Night

    IR-cut filter with auto switch (ICR)

    Video

    Max. Resolution

    1920 x 1080

    Video Compression

    H.264, MJPEG

    Frame Rate

    1080P (1920×1080): Max. 30 fps

    Video Streaming

    Triple

    OSD

    Up to 8 OSDs

    Privacy Mask

    Up to 8 areas

    Digital Zoom

    Supported

    Auto tracking

    Scene

    4, scene switching plan configurable

    Detection

    Line cross, enter/leave area, intrusion

    Smart Function

    Auto tracking, snapshot when a moving object breaks the rules

    Audio

    Audio Compression

    G.711

    Two-way Audio

    Supported

    Storage

    Edge Storage

    Micro SD, up to 128 GB

    Network

    Protocol

    L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, SIP, QoS

    Compatibility

    ONVIF, API

    Structure

    Pan Range

    360°

    Pan Speed

    0.1°/s ~ 240°/s

    Preset speed: 300°/s

    Tilt Range

    -15° ~ 90°(auto reverse)

    Tilt Speed

    0.1°/s ~ 160°/s

    Preset speed: 240°/s

    Number of Presets

    256

    Patrol

    Preset patrol, route patrol, recorded patrol

    Home Position

    Supported

    Drag-to-Zoom

    Supported

    Interface

    Audio I/O

    Audio interface

    Input: impedance 35 kΩ; amplitude 2 V [p-p]

    Output: impedance 600 kΩ; amplitude 2 V [p-p]

    Alarm I/O

    2 / 1

    Serial Port

    1 RS485

    Network

    100M/1000M Base-FX adaptive SFP single mode (FC)

    10M/100M/1000M Base-TX adaptive Ethernet

    1+1 share mode

    Video Output

    1 BNC, impedance 75 Ω; amplitude 1 V [p-p]

    General

    Power

    24 V AC±25% (Default), 24 V DC

    Power consumption: 17 ~54 W

    Dimensions (Ø x H)

    Φ227 mm × 359.4 mm (Φ8.9" x 14.2")

    Weight

    5.4 kg (11.9 lb)

    Working Environment

    –40°C to +70°C (-40°F ~ 158°F), Humidity ≤ 95% RH

    Ingress Protection

    IP66
