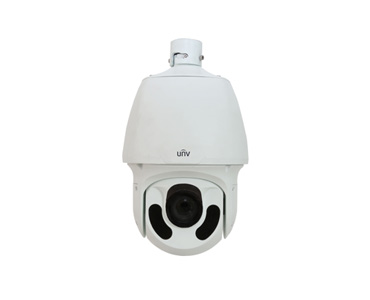

IPC6222ER-X20(P)-B
2MP 20x IR Network PTZ Dome Camera

    Optics

    *           Accurate and fast focusing

    *           The third-generation infrared technology

    *           Smart IR, up to 150 m (492ft) IR distance

    *           Optical glass window with higher light transmittance

    *           IR anti-reflection window to increase the infrared transmittance

    Compression

    *           Ultra 265,H.265, H.264, MJPEG

    *           Embedded smart algorithm

    *           Triple streams

    *           Customized OSD

    Network

    *           ONVIF Conformance

    Structure

    *           Special structure and window design to battle bad weather (especially in dusty weather)

    *           Innovative snow-removing functionality

    *           More effective heat dissipation system

    *           Intelligent temperature control technology

    *           6 KV surge protection designed for network interface



    IPC6222ER-X20-B

    IPC6222ER-X20P-B

    Camera

    Sensor

    1/3", progressive scan, 2.0megapixel, CMOS

    Lens

    5.2 ~ 104 mm (20x optical zoom) , AF automatic focusing and motorized zoom lens

    Angle of View (H)

    61.9° (wide) ~ 3.5° (tele)

    Shutter

    Auto/Manual; shutter time: 1/6 s ~ 1/100000 s

    Minimum Illumination

    Colour: 0.03 lux (F1.5, AGC ON)

    0 lux with IR

    Iris

    Auto/Manual; F1.5 ~ F3.0

    Day/Night

    IR-cut filter with auto switch (ICR)

    Digital noise reduction

    2D/3D DNR

    S/N

    >52dB

    IR Range

    UP to 150m (492ft)

    Defog

    Digital Defog

    WDR

    DWDR

    Video

    Video Compression

    Ultra 265,H.265, H.264, MJPEG

    H.264 code profile

    Baseline profile, Main Profile, High Profile

    Frame Rate

    Main Stream:2MP (1920×1080):Max. 30 fps;

    Sub Stream:2MP (1920×1080):Max. 30 fps;

    Third Stream: D1 (720×576): Max. 30 fps

    HLC

    Supported

    BLC

    Supported

    EIS

    Supported

    OSD

    Up to 8 OSDs

    Privacy Mask

    Up to 8 areas

    ROI

    Up to 8 areas

    Motion Detection

    Up to 4 areas

    Smart

    Behavior Detection

    Intrusion, cross line, motion detection

    Exception Detection

    Audio detection

    Intelligent Identification

    Face detection

    Statistical Analysis

    People counting

    General Function

    Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

    Audio

    Audio Compression

    G.711

    Two-way audio

    Supported

    Suppression

    Supported

    Sampling Rate

    8 KHZ

    Storage

    Edge Storage

    Micro SD, up to 128 GB

    Network Storage

    ANR

    Network

    Protocols

    IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP

    Compatible Integration

    ONVIF(Profile S, Profile G), API

    Pan & Tilt

    Pan Range

    360° (endless)

    Pan Speed

    0.1°/s ~ 240°/s

    Preset speed: 300°/s

    Tilt Range

    –15° ~ +90° (auto reverse)

    Tilt Speed

    0.1° ~ 160°/s

    Preset speed: 240°/s

    Number of Presets

    1024

    Patrol

    Up to 16 patrols, up to 32 presets per patrol

    Note: The total number of patrols and patterns is 16.

    Pattern

    Up to 16 patterns, with the total recording time not less 15 minutes per pattern

    Interface

    Audio I/O

    Audio cable

    Input: impedance 35 kΩ; amplitude 2 V [p-p]

    Output: impedance 600 Ω; amplitude 2 V [p-p]

    Alarm I/O

    1/ 1

    Network

    1 RJ45 10M/100M Base-TX Ethernet

    General

    Power

    24 V AC±25%, 24 V DC±25%

    24 V AC±25%, 24 V DC±25%, PoE (PSE Required)

    Power consumption: 9 ~ 42W

    Dimensions(ØxH)

    Ø227x359.4 mm (Ø8.9” x 14.2”)

    Weight

    5.28 kg (11.6lb)

    Working Environment

    –40°C ~ +65°C (-40°F ~ 149°F), Humidity :10%~95% RH(non-condensing)

    Ingress Protection

    IP66
