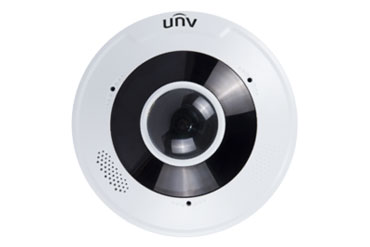

IPC868ER-VF18-B
4K Ultra HD Vandal-resistant Fisheye Fixed Dome Camera

    Optics

    *           Ultra wide angle lens, 360°panoramic image

    *           Embedded infrared light, 360°fill-in light, Up to 10 m (33 ft) IR distance

    *           2D/3D DNR (Digital Noise Reduction)

    Compression

    *           Max. 4000 * 3000 resolution

    *           Ultra265,H.265, H.264, MJPEG

    *           Built-in microphone & speaker, two-way talk supported

    *           ROI (Region of Interest)

    *           Distortion correction supported

    Network

    *           ONVIF Conformance

    Structure

    *           Support PoE power supply

    *           Wide temperature range: -30°C to 60°C (-22°F to 140°F)

    *           Wide voltage range of ±25%

    *           IK10

    *           IP66



    IPC868ER-VF18-B

    Camera

    Image sensorq

    1/1.7", progressive scan,12.0 megapixel, CMOS

    Lens

    1.8mm@ F2.4

    Shutter

    Auto/Manual, shutter time1/6 s ~1/100000 s

    Minimum Illumination

    Colour: 0.01 Lux (F2.4, AGC ON)

    0 Lux with IR

    Day / Night

    IR-cut filter for day & night function

    Digital noise reduction

    2D/3D DNR

    S/N Ratio

    >52dB

    IR Range

    Up to 20 m (65 ft)

    Defog

    Digital Defog

    WDR

    DWDR

    Video

    Compression

    Ultra265, H.265, H.264,MJPEG

    H.264 code profile

    Baseline profile, Main Profile, High Profile

    Fisheye Frame Rate

    Main Stream :15 fps(4000×3000, 3000×3000), 25 fps(2560×2560);

    Sub Stream: 15 fps(2000×1500, 2000×2000), 25 fps(2000×2000);

    Third Stream: 15 fps(720×576, 320×288)

    Panorama

    25 fps(3000×2000);

    15 fps(4000×3000,3000×2000,3000×1500)

    Frame Rate PTZ

    15 fps(1920×1080)

    ROI

    Up to 8 areas

    BLC

    Supported

    OSD

    Up to 8 OSDs

    Privacy Mask

    Up to 8 areas

    Motion Detection

    Up to 4 areas

    Audio

    Audio Compression

    G.711

    Two-way audio

    Supported

    Suppression

    Supported

    Sampling Rate

    8 KHZ

    Storage

    Edge Storage

    Micro SD, up to 128GB

    Network Storage

    ANR

    Network

    Protocols

    IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP

    Compatible Integration

    ONVIF(Profile S, Profile G), API

    Live View Display

    Mount Type

    Support table, wall, and ceiling

    Display Mode

    Support 10 display modes in total (including display modes of mount types and decoding modes):

    Display Mode:Original Image, Fisheye+4PTZ, Panoramic

    Preview Mode: Original Image , 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ , Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ

    Interface

    Audio I/O

    Audio interface

    Input: impedance 35 kΩ; amplitude 2 V [p-p]

    Output: impedance 600 Ω; amplitude 2 V [p-p]

    Alarm I/O

    2 / 1

    Multiple Alarm linkage editable

    Built-in Mic

    Supported

    Built-in Speaker

    Supported

    Serial

    1 channel RS485 interface

    Network

    1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet

    Video Output

    1 BNC, impedance 75 Ω; amplitude 1 V [p-p]

    General

    Power

    DC12V±25%, PoEIEEE802.3af

    Power consumption: Max. 21W

    Dimensions (Ø x H)

    Φ149mm x 55mm (Φ5.87” x 2.17”)

    Weight

    0.5kg(1.1lb)

    Working Environment

    -35~60(-31°F ~ 140°F), Humidity :10%~90% RH

    Ingress Protection

    IP66

    Vandal Resistant

    IK10

    Reset Button

    Supported
