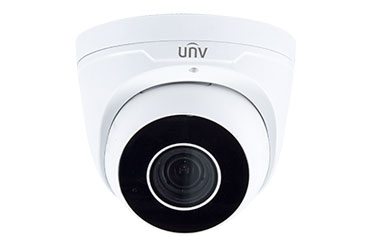

IPC3635ER3-DUPZ
5MP WDR Starlight (Motorized) VF Eyeball Network IR Camera

IPC3635ER3-DUPZ

5MP WDR Starlight (Motorized) VF Eyeball Network IR Camera

Optics

* Starlight illumination

* Day/night functionality

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

* Smart IR, up to 30 m (98 ft) IR distance

* 2D/3D DNR (Digital Noise Reduction)

* Built-in motorized lens for remote zoom

Compression

* Ultra 265, H.265, H.264, MJPEG

* Embedded smart algorithm

* Triple streams

* 9:16 corridor mode

Network

* ONVIF Conformance

Structure

* Support PoE power supply

* Wide temperature range: -40°C to 60°C (-40°F to 140°F)

* Wide voltage range of ±25%

* IP67

 IPC3635ER3-DUPZ
Camera
Sensor1/2.7", progressive scan, 5.0megapixel, CMOS
Lens2.7~13.5mm,AF automatic focusing and motorized zoom lens
Angle of view(H)93.38° ~ 28.56°(H)
ShutterAuto/Manual, shutter time: 1~1/100000 s
Minimum IlluminationColour: 0.001 Lux (F1.2, AGC ON)
0 Lux with IR

Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUp to 30m (98 ft) IR range
Defog Digital Defog
WDR120dB
Video
Video CompressionUltra 265,H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream: 5MP(2592 x 1944): Max.20 fps, 4MP(2560 x 1440): Max. 30 fps,3MP(2048x 1536): Max. 30 fps, 2MP(1920 x 1080): Max.30 fps;
Sub Stream:2MP(1920 x 1080): Max.30 fps;
Third Stream: D1(720 x 576): Max.30 fps;
9:16 Corridor FormatSupported
HLCSupported
BLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
Intelligent IdentificationFace detection, Defocus, Scene Change
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
SuppressionSupported
Sampling Rate8 KHZ
Storage
Edge StorageMicro SD, up to 128 GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible IntegrationONVIF(Profile S, Profile G),API
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
Built-in MicSupported
General
Power12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 8.16W
Dimensions (Ø x H)Φ129 x 110 mm (Ø5.08” x 4.3”)
Weight0.67 kg (1.48lb)
Working Environment-40°C ~ +60°C (-40°F ~ 140°F), Humidity:10%~90% RH(non-condensing)
Ingress ProtectionIP67
Reset ButtonSupported
