IPC3614SR3-DPF28(36)(60)

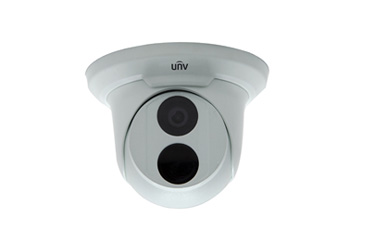

4MP Network IR Fixed Dome

    Optics

    *           Day/night functionality

    *           Up to 120 dB WDR (Wide Dynamic Range)

    *           SmartIR, up to 30 m (98 ft) IR distance

    Compression

    *           Ultra 265,H.265, H.264, MJPEG

    *           Embedded smart algorithm

    *           Triple streams

    *           9:16 corridor format

    Network

    *           ONVIF Conformance

    Structure

    *           Wide temperature range: -35°C to 60°C (-31°F to 140°F)

    *           Wide voltage range of ±25%

    *           4 KV surge protection designed for network interface

    *           IP67



    IPC3614SR3-DPF28

    IPC3614SR3-DPF36

    IPC3614SR3-DPF60

    Camera

    Sensor

    1/3", progressive scan,4.0 megapixel, CMOS

    Lens

    2.8mm@F1.8

    3.6mm@F1.8

    6mm@F1.8



    Angle of view(H)

    101.8°

    80.8°

    49.4°



    Shutter

    Auto/Manual, 1/6~1/100000 s



    Minimum Illumination

    Colour: 0.02 Lux (F1.8, AGC ON)

    0 Lux with IR



    Day/Night

    IR-cut filter with auto switch (ICR)



    Digital noise reduction

    2D/3D DNR



    S/N

    >52 dB



    IR Range

    Up to 30m (98 ft) IR range



    Defog

    Digital Defog



    WDR

    120dB

    AWB(Auto white balance)

    Auto/manual

    Gain Control

    Auto/manual

    Video

    Video Compression

    Ultra 265,H.265, H.264, MJPEG

    Frame Rate

    Main Stream:4MP (2592×1520): Max. 20 fps4MP (2560×1440): Max. 25 fps3MP (2048×1520): Max. 30 fps;

    Sub Stream:2MP (1920×1080): Max. 30 fps;

    Third Stream:D1(720×576) : Max. 30fps

    HLC

    Supported

    BLC

    Supported

    9:16 Corridor Mode

    Supported

    OSD

    Up to 8 OSDs

    Privacy Mask

    Up to 8 areas

    ROI

    Up to 8 areas

    Motion Detection

    Up to 4 areas

    Smart

    Behavior Detection

    Intrusion, cross line, motion detection

    Intelligent Identification

    Face detection, Defocus, Scene Change

    Statistical Analysis

    People counting

    General Function

    Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

    Network

    Protocols

    IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP

    Compatible Integration

    ONVIF(Profile S, Profile G), API

    Interface

    Network

    1 RJ45 10M/100M Base-TX Ethernet

    General

    Power

    12 V DC±25%, PoE (IEEE802.3 af)

    Power consumption: Max 5.5W

    Dimensions (Ø x H)

    Φ126 x 94 mm (Ø5.0” x 3.7”)

    Weight

    0.33 kg (0.73lb)

    Operating Conditions

    -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~ 95% RH(non-condensing)

    Ingress Protection

    IP67
