IPC3612LR3-PF28(40)-C

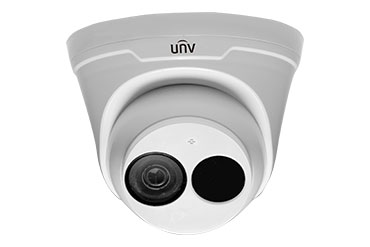

2MP Fixed Dome Network Camera

    Optics

    *           Day/night functionality

    *           Smart IR, up to 30 m (98 ft) IR distance

    *           2D/3D DNR (Digital Noise Reduction)

    Compression

    *           Ultra 265,H.265, H.264, MJPEG

    *           Triple streams

    Network

    *           ONVIF Conformance

    Structure

    *           Wide temperature range: -20°C to 50°C (-4°F to 122°F)

    *           Wide voltage range of ±25%



    IPC3612LR3-PF28-C

    IPC3612LR3-PF40-C

    Camera

    Sensor

    1/2.7", progressive scan, 2megapixel, CMOS

    Lens

    2.8mm@F1.8

    4.0mm@F1.8



    Angle of view(H)

    105.2°

    76.6°



    Shutter

    Auto/Manual, 1/6~1/100000 s



    Minimum Illumination

    Colour: 0.02 Lux (F1.8, AGC ON)

    0 Lux with IR



    Day/Night

    IR-cut filter with auto switch (ICR)

    Digital noise reduction

    2D/3D DNR

    S/N

    >52dB

    IR Range

    Up to 30m (98 ft) IR range

    Defog

    Digital Defog

    WDR

    DWDR

    Video

    Video Compression

    Ultra 265,H.265, H.264, MJPEG

    H.264 code profile

    Baseline profile, Main Profile, High Profile

    Frame Rate

    Main Stream: 2MP (1920×1080): Max. 25 fps;

    Sub Stream:720P (1280×720): Max. 25 fps;

    Third Stream:D1(720×576) : Max. 25fps

    HLC

    Supported

    BLC

    Supported

    OSD

    Up to 8 OSDs

    Privacy Mask

    Up to 8 areas

    ROI

    Up to 8 areas

    Motion Detection

    Up to 4 areas

    Network

    Protocols

    IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP

    Compatible Integration

    ONVIF(Profile S, Profile G), API

    Interface

    Network

    1 RJ45 10M/100M Base-TX Ethernet

    General

    Power

    12 V DC±25%, PoE (IEEE802.3 af)

    Power consumption: Max 5.0W

    Dimensions (Ø x H)

    Φ118 x 96 mm (Ø4.6” x 3.8”)

    Weight

    0.2 kg (0.44lb)

    Working Environment

    -20°C ~ +50°C (-4°F ~ 122°F), Humidity :10%~95% RH(non-condensing)
