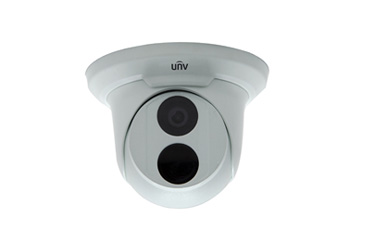

IPC3612ER3-PF28(40)(60)M-B
2MP Fixed Dome Network Camera

    Optics

    *           Day/night functionality

    *           Optical glass window with higher light transmittance

    *           IR anti-reflection window to increase the infrared transmittance

    *           3D DNR(Digital Noise Reduction)

    *           Smart IR, up to 30 m (98 ft) IR distance

    Compression

    *           H.265, H.264, MJPEG

    *           Embedded smart algorithm

    *           Triple streams

    *           9:16 corridor format

    Network

    *           ONVIF Conformance

    Structure

    *           Wide temperature range: -35°C to 60°C (-31°F to 140°F)

    *           Wide voltage range of ±25%

    *           4 KV surge protection designed for network interface

    *           IP67

    Camera

    IPC3612ER3-PF28M-B

    IPC3612ER3-PF40M-B

    IPC3612ER3-PF60M-B

    Sensor

    1/2.7", 2megapixel, progressive scan, CMOS

    Lens

    2.8mm@F1.8

    4.0mm@F1.8

    6mm@F1.8



    Angle of view(H)

    109.9°

    80.8°

    54.9°



    Shutter

    Auto/Manual, 1/6~1/100000 s



    Min. Illumination

    Colour: 0.02 Lux (F1.8, AGC ON)

    0 Lux with IR



    IR

    30m (98ft) IR range



    Day/Night

    IR-cut filter with auto switch (ICR)



    AWB(Auto white balance)

    Auto/manual

    Gain Control

    Auto/manual

    Noise Reduction

    2D/3D

    Video

    Max. Resolution

    1920×1080

    Video Compression

    H.265, H.264, MJPEG

    Frame Rate

    1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 30 fps

    Video Streaming

    Triple

    9:16 Corridor Mode

    Supported

    Evaluative Metering

    Supported

    OSD

    Up to 8 OSDs

    Motion Detection

    Up to 2 areas

    Privacy Mask

    Up to 8 areas

    Smart

    Behavior Detection

    Intrusion, crossing line, motion detection

    Intelligent Identification

    Face detection, Defocus, Scene Change

    Statistical Analysis

    People counting

    Network

    Protocols

    IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP,  802.1x

    Compatible Integration

    ONVIF,API

    Interface

    Network

    10M/100M Base-TX Ethernet

    General

    Power

    12 V DC, or PoE (IEEE802.3 af)

    Power consumption: Max 5.5W

    Dimensions (Ø x H)

    Φ126 x 94 mm (Ø5.0” x 3.7”)

    Weight

    0.45 kg (0.99lb)

    Operating Conditions

    -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)

    Ingress Protection

    IP67

    TR-JB03-A-IN

    3-inch Fixed Dome Junction Box

    TR-JB07&WM03-A-IN

    3-inch Fixed Dome Outdoor Wall Mount

    TR-WM03-A-IN

    3-inch Fixed Dome Indoor Wall Mount



    TR-UP06-IN

    Pole Mount Adapter

    TR-A01-IN
