IPC3612ER3-PF28(40)(60)-B

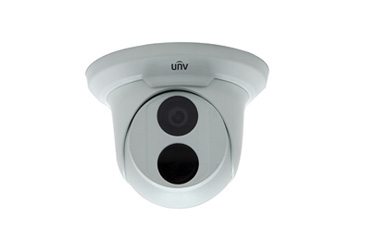

2MP Fixed Dome Network Camera

IPC3612ER3-PF28(40)(60)-B

2MP Fixed Dome Network Camera

Optics

* Day/night functionality

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

* Smart IR, Up to 30 m (98 ft) IR distance

* 3D DNR (Digital Noise Reduction)

Compression

* H.265, H.264, MJPEG

* Embedded smart algorithm

* Triple streams

* 9:16 corridor mode

Network

* ONVIF Conformance

Structure

* Wide temperature range: -35°C to 60°C (-31°F to 140°F)

* Wide voltage range of ±25%

* 4 KV surge protection designed for network interface

* IP67

 IPC3612ER3-PF28-BIPC3612ER3-PF40-BIPC3612ER3-PF60-B
Camera
Sensor1/2.7", 2megapixel, progressive scan, CMOS
Lens2.8mm@F1.84.0mm@F1.86.0mm@F1.8
Angle of view(H)109.9°80.8°54.9°
ShutterAuto/Manual, 1/6~1/100000 s
Min. IlluminationColour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR
IR30m (98ft) IR range
Day/NightIR-cut filter with auto switch (ICR)
WDRDigital
AWB(Auto white balance)Auto/manual
Gain ControlAuto/manual
Image RotationSupported
Noise Reduction2D/3D
Video
Max. Resolution1920×1080
Video CompressionH.265, H.264, MJPEG
Frame Rate1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 30 fps
Video StreamingTriple
9:16 Corridor FormatSupported
Evaluative MeteringSupported
OSDUp to 8 OSDs
Motion DetectionUp to 2 areas
Privacy MaskUp to 8 areas
Smart
Behavior DetectionIntrusion, crossing line, motion detection
Intelligent IdentificationFace detection, Defocus, Scene Change
Statistical AnalysisPeople counting
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
Compatible IntegrationONVIF,API
Interface
Network10M/100M Base-TX Ethernet
General
Power12 V DC, or PoE (IEEE802.3 af)
Power consumption: 3.5W (5.5W with IR on)
Dimensions (Ø x H)Φ126 x 94 mm (Ø5.0” x 3.7”)
Weight0.33 kg (0.73lb)
Working Environment-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing)
Ingress ProtectionIP67
