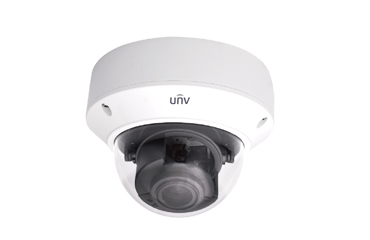

IPC3232ER3-DUV
2MP WDR Starlight Vandal-resistant Network IR Fixed Dome Camera

IPC3232ER3-DUV

2MP WDR Starlight Vandal-resistant Network IR Fixed Dome Camera

Optics

* Day/night functionality

* Smart IR, up to 30 m (98 ft) IR distance

* Up to 120 dB Optical WDR(Wide Dynamic Range)

* Starlight illumination

* 3D DNR (Digital Noise Reduction)

Compression

* H.265, H.264, MJPEG

* Embedded smart algorithm

* Triple streams

* ROI (Region of Interest)

* 9:16 corridor mode

Network

* ONVIF Conformance

Structure

* Support PoE power supply

* Built-in PoE splitter that outputs DC 12V

* Wide temperature range: -40°C to 60°C (-40°F to 140°F)

* Wide voltage range of ±25%

* IK10 vandal resistant

* IP67

  IPC3232ER3-DUV
Camera
Sensor1/2.8", 2.0 megapixel, progressive scan CMOS
Lens2.8~12 mm@F1.4;
Angle of View (H)105.0° (wide) ~33° (tele)
Zoom/FocusManual
ShutterAuto/Manual, 1/6~1/100000 s
Min. IlluminationColour: 0.002 Lux (F1.4, AGC ON)
0Lux with IR
IR RangeUp to 30m (98 ft) IR range
Day/NightIR-cut filter with auto switch (ICR)
S/N>52dB
WDROptical WDR (up to 120dB)
Video
Max. Resolution1920 x 1080
Video CompressionH.265,H.264,MJPEG
Frame Rate1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 30 fps
Video StreamingTriple
9:16 Corridor ModeSupported
ROISupported
Evaluative MeteringSupported
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas
Smart
Behavior DetectionIntrusion, crossing line, motion detection
Exception DetectionAudio detection
Intelligent IdentificationFace detection, Defocus, Scene Change
Statistical AnalysisPeople counting
Audio
Audio CompressionG.711
Two-way audioSupported
Storage
Edge StorageMicro SD, up to 128 GB
Network
ProtocolsL2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
Compatible IntegrationONVIF, API
Interface
Audio I/Oaudio cable
Input: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O1/ 1
Network10M/100M Base-TX Ethernet
Video Output1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
Reset ButtonSupported
Power OutputDC12V Power Output With PoE
General
Power12 V DC, or PoE (IEEE802.3 af)
max.6.6 W (PoE :max.7.2 W)
Dimensions (Ø x H)Φ148 x 111.3 mm (Ø5.8” x 4.4”)
Weight0.75 kg (1.7 lb)
Working Environment-40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress ProtectionIP67
Vandal ResistantIK10
