IPC3232ER-DV(VS)-C

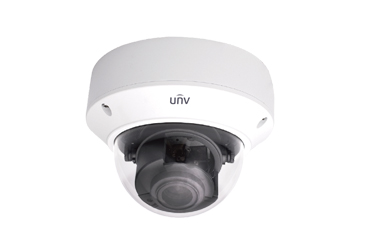

2MP Network IR Fixed Dome Camera

IPC3232ER-DV(VS)-C

2MP Network IR Fixed Dome Camera

Optics

* Day/night functionality

* SmartIR, up to 30 m (98 ft) IR distance

* Lowlight surveillance

* 2D/3D DNR (Digital Noise Reduction)

Compression

* Ultra 265,H.265, H.264, MJPEG

* Embedded smart algorithm

* Triple streams

* ROI (Region of Interest)

* 9:16 corridor mode

Network

* ONVIF Conformance

Structure

* Support PoE power supply

* Built-in PoE splitter that outputs DC 12V

* Wide temperature range: -40°C to 60°C (-40°F to 140°F)

* Wide voltage range of ±25%

* IK10 vandal resistant

* IP67

 IPC3232ER-DV-CIPC3232ER-VS-C
Camera
Sensor1/2.9", progressive scan,2.0 megapixel, CMOS
Lens2.8~12mm@ F1.4
Angle of View (H)94.0° (wide) ~28.0° (tele)
ShutterAuto/Manual, 1/6~1/100000 s
Minimum IlluminationColour: 0.01 Lux (F1.4, AGC ON)
0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUp to 30m (98 ft) IR range
DefogDigital Defog
WDR120dBDWDR
Video
Video CompressionUltra 265,H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream:2MP (1920×1080): Max. 30 fps;
Sub Stream:2MP (1920×1080): Max. 30 fps;
Third Stream:D1 (720×576): Max. 30 fps
HLCSupported
BLCSupported
9:16 Corridor ModeSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Audio
Audio CompressionG.711N/A
Two-way audioSupportedN/A
SuppressionSupportedN/A
Sampling Rate8 KHZN/A
Smart
Behavior DetectionIntrusion, cross line, motion detectio
Exception DetectionAudio detectionN/A
Intelligent IdentificationFace detection, Defocus, Scene Change
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User AuthenticationWatermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Storage
Edge StorageMicro SD, up to 128 GB
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, TLS
Compatible IntegrationONVIF(Profile S, Profile G), API
Interface
Audio I/OAudio cableN/A
Input: impedance 35 kΩ; amplitude 2 V [p-p]N/A
Output: impedance 600 Ω; amplitude 2 V [p-p]N/A
Alarm I/O1/ 1N/A
Network1 RJ45 10M/100M Base-TX Ethernet
Video Output1 BNC, impedance 75 Ω; amplitude 1 V [p-p]N/A
General
PowerDC12V±25%, PoE (IEEE802.3 af)
Power consumption: max. 7.2 W
Dimensions (Ø x H)Φ148 x 111.3 mm (Ø5.8” x 4.4”)
Weight0.75 kg (1.7 lb)
Working Environment-40°C ~ +60°C (-40°F ~ 140°F), Humidity:10%~90% RH(non-condensing)
Ingress ProtectionIP67
Vandal ResistantIK10
Reset ButtonSupported
