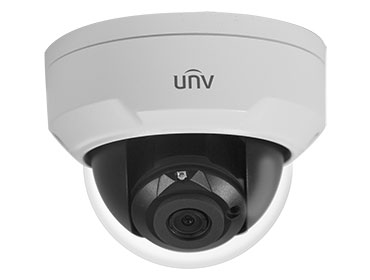

IPC322SR3-DVPF28(40)-C
2MP WDR Vandal-resistant Network IR Fixed Dome Camera

IPC322SR3-DVPF28(40)-C

2MP WDR Vandal-resistant Network IR Fixed Dome Camera

Optics

* Day/night functionality

* Smart IR, up to 30 m (98 ft) IR distance

* Car-grade LEDs, brighter and uniform light compensation

* Up to 120 dB WDR (Wide Dynamic Range)

* 2D/3D DNR (Digital Noise Reduction)

Compression

* Ultra 265,H.265, H.264, MJPEG

* Embedded smart algorithm

* Triple streams

* ROI (Region of Interest)

* Customized OSD

Network

* ONVIF Conformance

Structure

* Wide temperature range: -35°C to 60°C (-31°F to 140°F)

* Wide input voltage range of ±25%

* IK10 vandal resistant

* 3-Axis

* IP67

 IPC322SR3-DVPF28-CIPC322SR3-DVPF40-C
Camera
Sensor1/2.7", progressive scan ,2.0 megapixel, CMOS
Lens2.8 mm@F2.04.0mm@F2.0
Angle of View (H)112.7°86.5°
ShutterAuto/Manual, 1/6~1/100000 s
Minimum IlluminationColour: 0.01 Lux (F2.0, AGC ON)
0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52 dB
IR RangeUp to 30m (98 ft) IR range
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265,H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream:2MP (1920×1080): Max. 30 fps;
Sub Stream:2MP (1920×1080): Max. 30 fps;
Third Stream:D1 (720×576): Max. 30 fps
9:16 Corridor ModeSupported
HLCSupported
BLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
Exception DetectionAudio detection
Intelligent IdentificationFace detection, Defocus, Scene Change
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
Two-way audioSupported
SuppressionSupported
Sampling Rate8 KHZ
Storage
Edge StorageMicro SD, up to 128 GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible IntegrationONVIF(Profile S, Profile G), API
Interface
Audio I/OInput: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O1/ 1
Network1 RJ45 10M/100M Base-TX Ethernet
General
Power12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 5.5W
Dimensions (Ø x H)Φ108.5 x 81 mm (Ø4.28” x 3.2”)
Weight0.45 kg (0.99 lb)
Working Environment-35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
Ingress ProtectionIP67
Vandal ResistantIK10
