IPC322LR3-VSPF28(40)-C

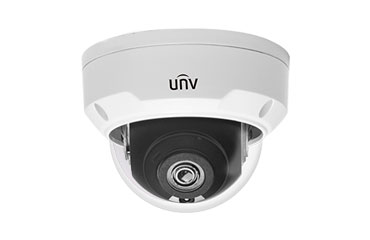

2MP Fixed Dome Network Camera

IPC322LR3-VSPF28(40)-C

2MP Fixed Dome Network Camera

Optics

* Day/night functionality

* SmartIR, up to 30 m (98 ft) IR distance

* Car-grade LEDs, brighter and uniform light compensation

* 2D/3D DNR (Digital Noise Reduction)

Compression

* Ultra 265,H.265, H.264, MJPEG

* Triple streams

* ROI (Region of Interest)

Network

* ONVIF Conformance

Structure

* Wide temperature range: -30°C to 60°C (-22°F to 140°F)

* Wide input voltage range of ±25%

* 2-Axis

* IK10 vandal resistant

* IP66

 IPC322LR3-VSPF28-CIPC322LR3-VSPF40-C
Camera
Sensor1/2.7", progressive scan , 2 megapixel, CMOS
Lens2.8 mm@ F1.84.0 mm@ F1.8
DORI DistanceLensDetect(m)Observe(m)Recognize(m)Identify(m)
2.8mm4216.88.44.2
4mm6024126
Angle of View (H)112.7°86.5°
Angle of View (V)60.1°44.1°
Angle of View (O)146.5°106.4°
AdjustmentanglePan: 0°~360°Tilt:0°~75°
ShutterAuto/Manual, 1/6~1/100000 s
Minimum IlluminationColour: 0.01 Lux (F1.8, AGC ON)
0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUp to 30m (98 ft) IR range
DefogDigital Defog
WDRDWDR
Video
Video CompressionUltra 265,H.265, H.264,MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream: 2MP (1920×1080): Max. 25 fps;
Sub Stream:720P (1280×720): Max. 25 fps;
Third Stream:D1(720×576) : Max. 25fps
HLCSupported
BLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas
ROISupported
Motion DetectionUp to 4 areas
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, TLS
Compatible IntegrationONVIF(Profile S), API
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
General
Power12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 5.0W
Dimensions (Ø x H)Φ108.5 x 81 mm (Ø4.28” x 3.2”)
Weight0.3 kg (0.66 lb)
Working Environment-30°C ~ +60°C (-22°F ~ 140°F), Humidity:10%~95% RH(non-condensing)
Ingress ProtectionIP66
Vandal ResistantIK10
