IPC312SR-VPF28(40)-C

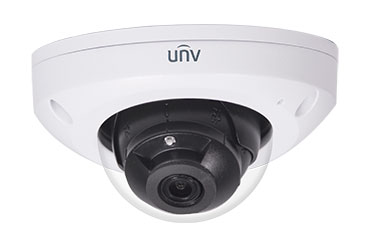

2MP Vandal-resistant IR Fixed Mini Dome Camera

    Optics

    *           Day/night functionality

    *           Smart IR, up to 15 m (49 ft) IR distance

    *           2D/3D DNR (Digital Noise Reduction)

    *           Car-grade LEDs, brighter and uniform light compensation

    Compression

    *           Ultra 265,H.265, H.264, MJPEG

    *           Embedded smart algorithm

    *           Triple streams

    *           ROI (Region of Interest)

    *           Customized OSD

    Network

    *           ONVIF Conformance

    Structure

    *           Wide temperature range: -35°C to 60°C (-31°F to 140°F)

    *           Wide voltage range of ±25%

    *           Built-in microphone

    *           IK10 vandal resistant

    *           IP66



    IPC312SR-VPF28-C

    IPC312SR-VPF40-C

    Camera





    Sensor

    1/2.9", progressive scan ,2.0 megapixel, CMOS

    Lens

    2.8mm@F2.0

    4.0 mm@F2.0

    Angle of View (H)

    105.2°

    83.7°

    Shutter

    Auto/Manual, 1/6~1/100000 s

    Minimum Illumination

    Colour: 0.02 Lux (F2.0, AGC ON)

    0 Lux with IR

    Day/Night

    IR-cut filter with auto switch (ICR)

    Digital noise reduction

    2D/3D DNR

    S/N

    ≥52dB

    IR Range

    Up to 15m (49 ft) IR range

    Defog

    Digital Defog

    WDR

    DWDR

    Video

    Video Compression

    Ultra 265,H.265, H.264,MJPEG

    H.264 code profile

    Baseline profile, Main Profile, High Profile

    Frame Rate

    Main Stream:2MP (1920×1080): Max. 30 fps;

    Sub Stream:2MP (1920×1080): Max. 30 fps;

    Third Stream:D1 (720×576): Max. 30 fps

    HLC

    Supported

    BLC

    Supported

    9:16 Corridor Mode

    Supported

    OSD

    Up to 8 OSDs

    Privacy Mask

    Up to 8 areas

    ROI

    Up to 8 areas

    Motion Detection

    Up to 4 areas

    Smart

    Behavior Detection

    Intrusion, cross line, motion detection

    Exception Detection

    Audio detection

    Intelligent Identification

    Face detection, Defocus, Scene Change

    Statistical Analysis

    People counting

    General Function

    Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

    Audio

    Audio Compression

    G.711

    Two-way audio

    Supported

    Suppression

    Supported

    Sampling Rate

    8 KHZ

    Storage

    Edge Storage

    Micro SD, Up to 128 GB

    Network Storage

    ANR

    Network

    Protocols

    IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP

    Compatible Integration

    ONVIF(Profile S, Profile G), API

    Interface

    Audio I/O

    audio cable

    Input: impedance 35 kΩ; amplitude 2 V [p-p]

    Output: impedance 600 Ω; amplitude 2 V [p-p]

    Built-in Mic

    Supported

    Network

    1 RJ45 10M/100M Base-TX Ethernet

    General

    Power

    12 V DC±25%, PoE (IEEE 802.3af)

    Power consumption: Max 5W

    Dimensions (Ø x H)

    Φ110 x 61 mm (Ø4.3” x 2.4”)

    Weight

    0.25 kg (0.55 lb)

    Working Environment

    -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing)

    Ingress Protection

    IP66

    Vandal Resistant

    IK10
