IPC2325EBR5-DUPZ

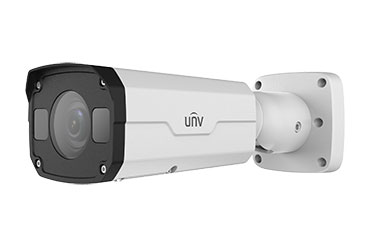

5MP WDR Starlight (Motorized) VF Network IR Bullet Camera

    Optics

    *           Starlight illumination

    *           Day/night functionality

    *           Smart IR, up to 50m (164 ft) IR distance

    *           Up to 120 dB Optical WDR (Wide Dynamic Range)

    *           2D/3D DNR (Digital Noise Reduction)

    Compression

    *           Ultra 265, H.265, H.264, MJPEG

    *           Embedded smart algorithm

    *           Triple streams

    *           ROI (Region of Interest)

    *           9:16 corridor mode

    *           Customized OSD

    Network

    *           ONVIF Conformance

    Structure

    *           Support PoE power supply

    *           Wide temperature range: -35°C to 60°C (-31°F to 140°F)

    *           Wide voltage range of ±25%

    *           IP67



    IPC2325EBR5-DUPZ

    Camera

    Sensor

    1/2.7", progressive scan,5.0megapixel, CMOS

    Lens

    2.7~13.5mmAF automatic focusing and motorized zoom lens

    Angle of View(H)

    104.2°~ 28.3°(H)

    Shutter

    Auto/Manual, shutter time: 1~1/100000 s

    Minimum Illumination

    Colour: 0.001 Lux (F1.2, AGC ON)

    0 Lux with IR on

    Day/Night

    IR-cut filter with auto switch (ICR)

    Digital noise reduction

    2D/3D DNR

    S/N

    >52 dB

    IR Range

    Up to 50m (164 ft) IR range

    Defog

    Digital Defog

    WDR

    120dB

    Video

    Video Compression

    Ultra 265,H.265, H.264, MJPEG

    H.264 code profile

    Baseline profile, Main Profile, High Profile

    Frame Rate

    Main Stream:5MP(2592 x 1944): Max. 20 fps, 4MP(2560 x 1440): Max. 30 fps, 3MP(2048x 1536): Max. 30 fps, 2MP(1920 x 1080): Max. 30 fps;

    Sub Stream:2MP(1920 x 1080): Max. 30 fps;

    Third Stream:D1(720 x 765): Max. 30 fps

    9:16 Corridor Mode

    Supported

    HLC

    Supported

    BLC

    Supported

    OSD

    Up to 8 OSDs

    Privacy Mask

    Up to 8 areas

    ROI

    Up to 8 areas

    Motion Detection

    Up to 4 areas

    Smart

    Behavior Detection

    Intrusion, cross line, motion detection

    Exception Detection

    Audio detection

    Intelligent Identification

    Face detection, Defocus ,Scene Change

    Statistical Analysis

    People counting

    General Function

    Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

    Audio



    Audio Compression

    G.711



    Two-way audio

    Supported



    Suppression

    Supported



    Sampling Rate

    8 KHZ



    Storage

    Edge Storage

    Micro SD, up to 128 GB

    Network Storage

    ANR

    Network

    Protocols

    IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP

    Compatible Integration

    ONVIF(Profile S, Profile G), API

    Interface

    Audio I/O

    Input: impedance 35 kΩ; amplitude 2 V [p-p]

    Output: impedance 600 Ω; amplitude 2 V [p-p]

    Alarm I/O

    1 / 1

    Network

    1 RJ45 10M/100M Base-TX Ethernet

    General

    Power

    12 V DC±25%, PoE (IEEE802.3 af)

    Power consumption: Max 10 W

    Dimensions (L × W × H)

    253.4 ×86.4 ×78.7 mm (10.0” × 3.4” × 3.1”)

    Weight

    0.58kg (1.28lb)

    Working Environment

    -35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~ 90% RH(non-condensing)

    Ingress Protection

    IP67
