IPC742SR9-PZ30-32G

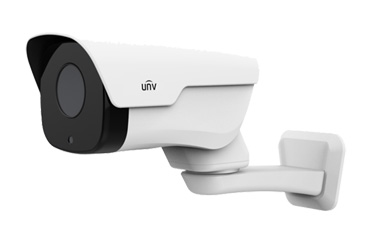

1080P Zoom Lens IR PTZ Camera

IPC742SR9-PZ30-32G

1080P Zoom Lens IR PTZ Camera

PTZ

* Precision motor with accuracy deviation less than 0.1 degree.

* Pan range 250°, tilt range -50° to 50°

* Pan speed up to 15°/s, tilt speed up to 5°/s

Optics

* Smart IR, up to 100m (328 ft) IR distance

* 2X Optical Zoom & Auto Focus

* IR anti-reflection window to increase the infrared transmittance

* Day/night functionality

Compression

* Ultra 265,H.265, H.264, MJPEG

* Embedded smart algorithm

* Triple streams

* Customized OSD

Network

* ONVIF Conformance

Structure

* Support PoE power supply

* Wide temperature range: -35°C to +60°C (-31°F to +140°F)

* Wide voltage range of ±25%

* IP66

 IPC742SR9-PZ30-32G
Camera
Sensor1/2.8", progressive scan ,2.0 megapixel, CMOS
Lens3~6 mm(2 x optical zoom , 16Xdigital zoom), AF automatic focusing and motorized zoom lens
Angle of view(H)90.9°(wide) ~ 51.5°(tele)
ShutterAuto/Manual, 1/6s ~ 1/100000s
Minimum IlluminationColor: 0.03 Lu× (F1.8, AGC ON)
0 Lux with IR on
IrisAuto/Manual, F1.8
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUp to100m (328 ft) IR range
DefogDigital Defog
WDRDWDR
Video
Video CompressionUltra 265,H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream: 2MP (1920×1080): Max. 30 fps;
Sub Stream: 2MP (1920×1080): Max. 30 fps;
Third Stream:D1(720×576) : Max. 30 fps
HLCSupported
BLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
Exception DetectionAudio detection
Intelligent IdentificationFace detection
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
Two-way AudioSupported
SuppressionSupported
Sampling Rate8 KHZ
Storage
Edge StorageBuilt-in 32GB eMMC
Network StorageANR
Network
ProtocolIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
CompatibilityONVIF(Profile S), API
Structure
Pan Range250°
Pan Speed0.1°/s ~ 15°/s
Preset speed: 15°/s
Tilt Range-50° ~ 50°
Tilt Speed0.1°/s ~5°/s
Preset speed: 5°/s
Number of Presets400
PatrolUp to 16 patrols, up to 32 presets per patrol
Note:The total number of patrols and patterns is 16.
Interface
Audio I/O3.5mm connector
Input: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O2 / 1
Network1 RJ45 10M/100M adaptive Ethernet
General
Power12V DC±25%, PoE(IEEE802.3at)
Power consumption: Max. 17.23 W
Dimensions357 mm × 106 mm × 194mm (14.1"×4.2"×7.7")
Weight1.16kg (2.6 lb)
Working Environment–35°C to+60°C (-31°F to 140°F), Humidity:10%~95% RH(non-condensing)
Ingress ProtectionIP66
