IPC262ER9-X10DU

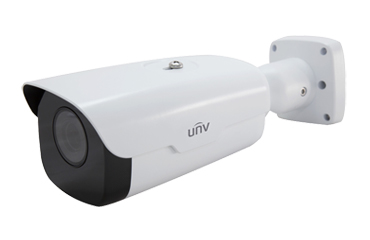

2MP WDR Startlight AF Network IR Bullet Camera

IPC262ER9-X10DU

2MP WDR Startlight AF Network IR Bullet Camera

Optics

* Starlight illumination

* Up to 120 dB WDR(Wide Dynamic Range)

* Smart IR, up to up to 100m (328 ft) IR distance

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

* Day/night functionality

Compression

* Ultra 265,H.265, H.264, MJPEG

* Embedded smart algorithm

* Triple streams

* ROI (Region of Interest)

* 9:16 corridor mode

* Customized OSD

Network

* ONVIF Conformance

Structure

* Support PoE power supply

* Wide temperature range: -40°C to 60°C (-40°F to 140°F)

* Wide voltage range of ±25%

* IP67

 IPC262ER9- X10DU
Camera
Sensor1/2.8", progressive scan,2.0megapixel, CMOS
Lens4.7~47mm; P-Iris, AF automatic focusing and motorized zoom lens
Angle of View (H)65°(wide)~ 9°(tele)
ShutterAuto/Manual, 1/10~1/100,000s
Minimum IlluminationColour: 0.002 Lux (F1.4, AGC ON)
0 Lux with IR
IrisAuto/Manual, F1.6~F3.0, DC-Iris
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeSmart-IR ,up to 100m (328ft) IR range
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265,H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream: 2MP (1920×1080): Max. 30 fps;
Sub Stream: 2MP (1920×1080): Max. 30 fps;
Third Stream:D1(720×576) : Max. 30fps
9:16 Corridor ModeSupported
HLCSupported
BLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
Exception DetectionAudio detection
Intelligent IdentificationFace detection, Defocus, Scene Change
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
Two-way audioSupported
SuppressionSupported
Sampling Rate8 KHZ
Storage
Edge StorageMicro SD, Up to 128 GB
·         Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible IntegrationONVIF(Profile S, Profile G),API
Interface
Audio I/OAudio cable
1 Input: impedance 35 kΩ; amplitude 2 V [p-p]
1 Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O2/ 1
Serial Port1 RS485
Network1 RJ45 10M/100M Base-TX Ethernet
Video Output1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
General
PowerDC12V±25%, AC24V±25% ,PoE (IEEE802.3 at)
Power consumption: 13.7W
Dimensions (L × W × H)305.5 ×104.1 ×97.3mm (12.0” × 4.1” × 3.8”)
Weight1.65 kg (3.6lb)
Working Environment-40°C ~ +60°C (-40°F ~ 140°F), Humidity:10%~95% RH(non-condensing)
Ingress ProtectionIP67
Reset ButtonSupported
