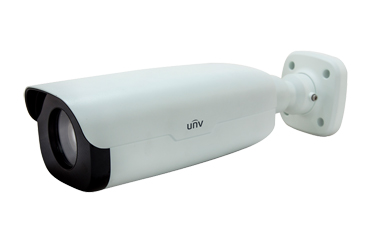

IPC252ERA-X22DUP
2MP 22x Starlight WDR Network IR Bullet Camera

IPC252ERA-X22DUP

2MP 22x Starlight WDR Network IR Bullet Camera

Optics

* Starlight illumination

* Accurate and fast focusing

* Smart IR, up to 200 m (656ft) IR distance

* Up to 120 dB WDR(Wide Dynamic Range)

* Auto day/night functionality

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

Compression

* Ultra 265,H.265, H.264, MJPEG

* Embedded smart algorithm

* Triple Streams

* ROI (Region of Interest)

* 9:16 corridor format

* Customized OSD

Network

* ONVIF Conformance

Structure

* Wide temperature range: -40°C to 60°C (-40°F to 140°F)

* Wide voltage range of ±25%

* IP67

 IPC252ERA-X22DUP
Camera
Sensor1/1.9", progressive scan, 2.0 megapixel, CMOS
Lens6.5~143mm, AF automatic focusing and motorized zoom lens
Optical Zoom22
DORI DistanceLensDetect(m)Observe(m)Recognize(m)Identify(m)
6.5mm7831.215.67.8
143mm1716686.4343.2171.6
Angle of view(H)59°~3°
Angle of View (V)34.6°~1.6°
Angle of View (O)76.7°~3.7°
AdjustmentanglePan: 0°~360°Tilt: 0°~90°Rotate:0°~360°
ShutterAuto/Manual, 1/6~1/100000 s
Minimum
Illumination
Colour: 0.001 Lux (F1.5, AGC ON)
0 Lux with IR
IrisAuto/Manual, F1.5~F3.4, DC-Iris
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52 dB
IR Rangeup to 200 m (656 ft) IR range
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame Rate Main Stream:2MP (1920×1080):Max. 60 fps;
Sub Stream:2MP (1920×1080):Max. 60 fps;
Third Stream: D1 (720×576): Max. 60 fps
9:16 Corridor ModeSupported
ROISupported
HLCSupported
BLCSupported
OSDUp to 8 OSDs
Motion DetectionUp to 4 areas
Privacy MaskUp to 8 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
IntrusionEnter and loiter in a pre-defined virtual region
cross lineCross a pre-defined virtual line
motion detectionMoving within a pre-defined virtual region
Recognition:Face detection、Audio detection
Intelligent IdentificationDefocus, Scene Change
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
Two-way audioSupported
SuppressionSupported
Sampling Rate8 KHZ
Storage
Edge StorageMicro SD, up to 128 GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible IntegrationONVIF(Profile S, Profile G),API
Interface
Audio I/OAudio cable
1 Input: impedance 35 kΩ; amplitude 2 V [p-p]
1 Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O2/ 1
Serial Port1 RS485
Network1 RJ45 10M/100M Base-TX Ethernet
Video Output1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
General
Power24 V AC ±25%, -P: PoE(IEEE 802.3at)
Power consumption:Max 21W
Dimensions (L × W × H)396.5 × 137 × 112mm (15.6” ×5.4” ×4.4”)
Weight3.7 kg (8.2 lb)
Working Environment-40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress ProtectionIP67
Reset ButtonSupported
