IPC252ERA-X22DUG

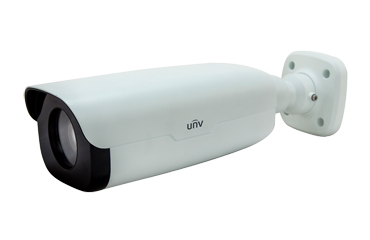

2MP 22x Starlight WDR Network IR Bullet Camera

IPC252ERA-X22DUG

2MP 22x Starlight WDR Network IR Bullet Camera

Optics

* Starlight illumination

* Accurate and fast focusing

* Smart IR, up to 200 m (656 ft) IR distance

* Up to 120 dB WDR(Wide Dynamic Range)

* Auto day/night functionality

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

Compression

* Ultra 265, H.265, H.264, MJPEG

* Embedded smart algorithm

* Triple Streams

* ROI (Region of Interest)

* 9:16 corridor format

* Customized OSD

Network

* ONVIF Conformance

Structure

* Wide temperature range: -40°C to 60°C (-40°F to 140°F)

* Wide voltage range of ±25%

* IP67

 IPC252ERA-X22DUG
Camera
Sensor1/1.9", progressive scan,2.0 megapixel, CMOS
Lens6.5~143mm(22 x optical zoom ), AF automatic focusing and motorized zoom lens
Angle of view(H)59°(wide) ~ 3°(tele)
ShutterAuto/Manual, 1/6~1/100000 s
Minimum IlluminationColour: 0.001 Lux (F1.5, AGC ON)
0 Lux with IR
IrisAuto/Manual, F1.5~F3.4, DC-Iris
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52 dB
IR Rangeup to 200 m (656 ft) IR range
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265,H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame Rate Main Stream:2MP (1920×1080):Max. 60 fps;
Sub Stream:2MP (1920×1080):Max. 60 fps;
Third Stream: D1 (720×576): Max. 60 fps
9:16 Corridor ModeSupported
HLCSupported
BLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
Exception DetectionAudio detection
Intelligent IdentificationFace detection, Defocus, Scene Change
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
Two-way audioSupported
SuppressionSupported
Sampling Rate8 KHZ
Storage
Edge StorageMicro SD, up to 128 GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible IntegrationONVIF(Profile S, Profile G),API
Interface
Audio I/OAudio cable
1 Input: impedance 35 kΩ; amplitude 2 V [p-p]
1 Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O2/ 1
Serial Port1 RS485
Network1 RJ45 100M Base-FX SFP+100M Base-TX Ethernet
Video Output1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
General
Power24 V AC ±25%,-P: PoE(IEEE 802.3at)
Power consumption: Max 21W
Dimensions (L × W × H)396.5 × 137 × 112mm (15.6” ×5.4” ×4.4”)
Weight3.7 kg (8.2 lb)
Working Environment-40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress ProtectionIP67
Reset ButtonSupported
