IPC2322EBR-DPZ28

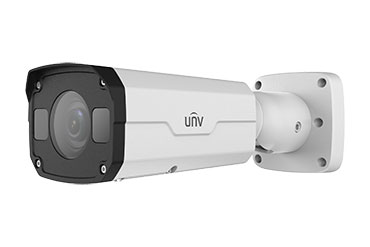

2MP Motorized VF Network IR Bullet Camera

IPC2322EBR-DPZ28

2MP Motorized VF Network IR Bullet Camera

Optics

* Day/night functionality

* Smart IR, up to 30m (98 ft) IR distance

* Up to 120 dB Optical WDR (Wide Dynamic Range)

* 3D DNR (Digital Noise Reduction)

Compression

* H.265, H.264, MJPEG

* Embedded smart algorithm

* Triple streams

* ROI (Region of Interest)

* 9:16 corridor mode

* Customized OSD

Network

* ONVIF Conformance

Structure

* Support PoE power supply

* Wide temperature range: -35°C to 60°C (-31°F to 140°F)

* Wide voltage range of ±25%

* IP67,IK10

 IPC2322EBR-DPZ28
Camera
Sensor1/2.9", 2 megapixel, progressive scan CMOS
Lens2.8~12mm @F1.4
Angle of View(H)90° ~ 28°
Zoom/FocusMotor drive
ShutterAuto/Manual, 1/6~1/100000 s
Min. IlluminationColour: 0.02 Lux (F1.4, AGC ON)
0 Lux with IR on
IR RangeUp to 30m (98 ft) IR range
Day/NightIR-cut filter with auto switch (ICR)
S/N>52 dB
WDROptical WDR (up to 120 dB)
Video
Max. Resolution1920 × 1080
Video CompressionH.265, H.264, MJPEG
Frame Rate1080P (1920*1080): Max. 30 fps; 720P (1280*720): Max. 30 fps; D1 (720*576): Max. 30 fps
Video StreamingTriple
9:16 Corridor ModeSupported
ROISupported
HLCSupported
Evaluative MeteringSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8areas
Smart
Behavior DetectionIntrusion, crossing line, motion detection
Exception DetectionAudio detection
Intelligent IdentificationFace detection, Defocus ,Scene Change
Statistical AnalysisPeople counting
Audio
Audio CompressionG.711
Two-way audioSupported
Storage
Edge StorageMicro SD, up to 128 GB
Network
ProtocolsL2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP,  802.1x
Compatible IntegrationONVIF, API
Interface
Audio I/OAudio cable
Input: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O1 / 1
Network10M/100M Base-TX Ethernet
General
Power12 V DC, or PoE (IEEE802.3 af)
Power consumption: Max 9W
Dimensions (L × W × H)253.4 ×86 ×71.7 mm (9.98” × 3.4” × 2.8”)
MaterialCast aluminum
Weight0.58kg (1.28lb)
Working Environment-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress ProtectionIP67
Vandal ResistantIK10
