IPC2122SR3-UPF40(60)

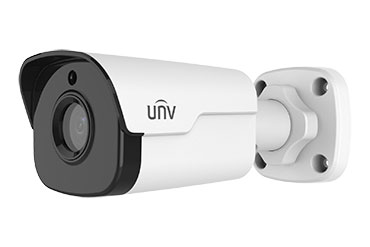

2MP Starlight Network IR Mini Bullet Camera

IPC2122SR3-UPF40(60)

2MP Starlight Network IR Mini Bullet Camera

Optics

* Starlight illumination

* Day/night functionality

* Smart IR , up to 30 m (98 ft) IR distance

* IR anti-reflection window to increase the infrared transmittance

* 3D DNR (Digital Noise Reduction)

Compression

* H.265, H.264, MJPEG

* Embedded smart algorithm

* Triple streams

* ROI (Region of Interest)

* 9:16 corridor format

Network

* ONVIF Conformance

Structure

* Wide temperature range: -35°C to 60°C (-31°F to 140°F)

* Wide voltage range of ±25%

* IP67

 IPC2122SR3-UPF40IPC2122SR3-UPF60
Camera
Sensor1/2.9", 2.0 megapixel, progressive scan, CMOS
Lens4.0mm@F1.6 6.0mm@F1.6
Angle of View(H)76.6°51.6°
ShutterAuto/Manual, 1/6~1/100000 s
Min. IlluminationColour: 0.002 Lux (F1.6, AGC ON) 0 Lux with IR on
IR RangeUp to 30m (98 ft) IR range
Day/NightIR-cut filter with auto switch (ICR)
S/N>52dB
WDRDigital
Noise Reduction2D/3D
Video
Max. Resolution1920×1080
Video CompressionH.265, H.264, MJPEG
Frame Rate1080P (1920*1080): Max. 30 fps; 720P (1280*720): Max. 30 fps; D1 (720*576): Max. 30 fps
Video StreamingTriple
9:16 Corridor ModeSupported
ROISupported
HLCSupported
Evaluative MeteringSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
Smart
Behavior DetectionIntrusion, crossing line, motion detection
Intelligent IdentificationFace detection, Defocus, Scene Change
Statistical AnalysisPeople counting
Network
ProtocolsL2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
Compatible IntegrationONVIF, API
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
General
Power12 V DC, or PoE (IEEE802.3 af)
Power consumption: Max 6.4 W
Dimensions (L × W × H)157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight0.45 kg (0.99 lb)
Working Environment-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress ProtectionIP67
