IPC2122SR3-PF40(60)-B

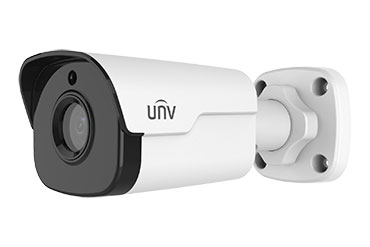

2MP Mini Fixed Bullet Network Camera



    IPC2122SR3-PF40-B

    IPC2122SR3-PF60-B

    Camera

    Sensor

    1/2.7", 2.0 megapixel, progressive scan, CMOS

    Lens

    4.0mm@F1.8

    6.0mm@F1.8



    Angle of View(H)

    80.8°

    54.9°



    Shutter

    Auto/Manual, 1/6~1/8000 s



    Min. Illumination

    Colour: 0.02 Lux (F1.8, AGC ON)

    0 Lux with IR on



    IR Range

    Up to 30m (98 ft) IR range

    Day/Night

    IR-cut filter with auto switch (ICR)

    S/N

    >52dB

    WDR

    Digital

    Noise Reduction

    2D/3D

    Video

    Max. Resolution

    1920×1080

    Video Compression

    H.265, H.264, MJPEG

    Frame Rate

    1080P (1920*1080): Max. 30 fps; 720P (1280*720): Max. 30 fps; D1 (720*576): Max. 25 fps

    Video Streaming

    Triple

    9:16 Corridor Mode

    Supported

    ROI

    Supported

    OSD

    Up to 8 OSDs

    Motion Detection

    Up to 2 areas

    Privacy Mask

    Up to 8 areas

    Smart

    Behavior Detection

    Intrusion, crossing line, motion detection

    Exception Detection

    Audio detection

    Intelligent Identification

    Face detection

    Statistical Analysis

    People counting

    Network

    Protocols

    L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x

    Compatible Integration

    ONVIF, API

    Interface

    Network

    1 RJ45 10M/100M Base-TX Ethernet

    General

    Power

    12 V DC, or PoE (IEEE802.3 af)

    Power consumption: Max 6.4 W

    Dimensions (L × W × H)

    157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)

    Weight

    0.45 kg (0.99 lb)

    Working Environment

    -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)

    Ingress Protection

    IP66



    TR-JB05-IN

    Extra back outlet for cable (Covered with black foam)

    TR-UP06-A-IN

    Pole Mount Adapter





    TR-A01-IN
