IPC2122SR3-APF40(60)-C

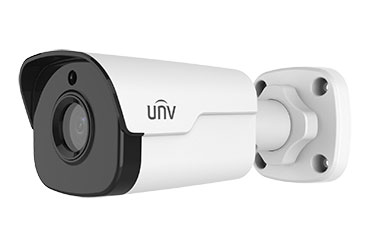

2MP Mini Fixed Bullet Network Camera

IPC2122SR3-APF40(60)-C

2MP Mini Fixed Bullet Network Camera

Optics

* Day/night functionality

* Smart IR , up to 30 m (98 ft) IR distance

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

* 2D/3D DNR (Digital Noise Reduction)

Compression

* Ultra 265, H.265, H.264, MJPEG

* Embedded smart algorithm

* Triple streams

* 9:16 corridor format

Network

* ONVIF Conformance

Structure

* Wide temperature range: -35°C to 60°C (-31°F to 140°F)

* Wide voltage range of ±25%

* IP67

 IPC2122SR3-APF40-CIPC2122SR3-APF60-C
Camera
Sensor1/2.7", progressive scan,2.0 megapixel, CMOS
Lens4.0mm@F1.86.0mm@F1.8
Angle of View(H)86.5°55.4°
ShutterAuto/Manual, 1/6~1/100000 s
Minimum IlluminationColour: 0.01 Lux (F1.8, AGC ON)
0 Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUp to 30m (98 ft) IR range
DefogDigital Defog
WDRDWDR
Video
Video CompressionUltra 265,H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream:2MP (1920×1080): Max. 30 fps;
Sub Stream: 2MP (1920×1080): Max. 30 fps;
Third Stream:D1 (720×576): Max.30 fps
9:16 Corridor ModeSupported
HLCSupported
BLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
Exception DetectionAudio detection
Intelligent IdentificationFace detection, Defocus, Scene Change
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
SuppressionSupported
Sampling Rate8 KHZ
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible IntegrationONVIF(Profile S), API
Interface
Alarm I/O1/ 1
Built-in MicSupported
Network1 RJ45 10M/100M Base-TX Ethernet
General
Power12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 6.4W
Dimensions (L × W × H)157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight0.45 kg (0.99lb)
Working Environment-35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing)
Ingress ProtectionIP67
Reset ButtonSupported
