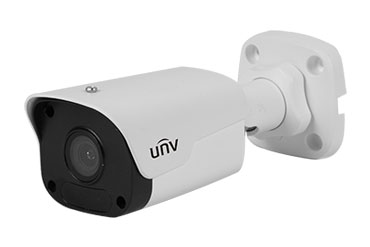

IPC2122LR3-PF40(60)-C
2MP Mini Fixed Bullet Network Camera

IPC2122LR3-PF40(60)-C

2MP Mini Fixed Bullet Network Camera

Optics

* Day/night functionality

* Smart IR , up to 30 m (98 ft) IR distance

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

* 2D/3D DNR (Digital Noise Reduction)

Compression

* Ultra 265, H.265, H.264, MJPEG

* Triple streams

Network

* ONVIF Conformance

Structure

* Wide temperature range: -30°C to 60°C (-22°F to 140°F)

* Wide voltage range of ±25%

* IP66

 IPC2122LR3-PF40-CIPC2122LR3-PF60-C
Camera
Sensor1/2.7", progressive scan, 2.0 megapixel, CMOS
Lens4.0mm@F1.86.0mm@F1.8
DORI DistanceLensDetect(m)Observe(m)Recognize(m)Identify(m)
4mm6024126
6mm9036189
Angle of View(H)86.5°55.4°
Angle of View (V)44.1°30.2°
Angle of View (O)106.4°68.1°
AdjustmentanglePan:0°~360°Tilt:0°~90°Rotate:0°~360°
ShutterAuto/Manual, 1/6~1/100000 s
Minimum IlluminationColour: 0.01 Lux (F1.8, AGC ON)
0 Lux with IR on

Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D
S/N>52dB
IR RangeUp to 30m (98 ft) IR range
DefogDigital Defog
WDRDWDR
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream:2MP (1920×1080): Max. 25 fps;
Sub Stream:720P (1280×720): Max. 25 fps;
Third Stream:D1 (720×576): Max.25 fps
HLCSupported
BLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, TLS
Compatible IntegrationONVIF(Profile S), API
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
General
Power12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 5W
Dimensions (L × W × H)167.3 × 62.9 ×62.7 mm (6.6” × 2.5” × 2.5”)
Weight0.25kg (0.55 lb)
Working Environment-30°C ~ +60°C (-22°F ~ 140°F), Humidity:10%~95% RH(non-condensing)
Ingress ProtectionIP66
