IPC2121SR3-PF36(60)(120)

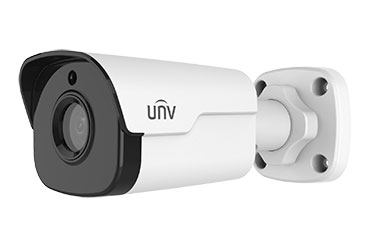

1.3MP Network IR Mini Bullet Camera

IPC2121SR3-PF36(60)(120)

1.3MP Network IR Mini Bullet Camera

Optics

* Day/night functionality

* SmartIR ,up to 30 m (98 ft) IR distance

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

* 3D DNR (Digital Noise Reduction)

Compression

* H.264/MJPEG

* Triple streams

Network

* ONVIF Conformance

Structure

* Wide temperature range: -35°C to 60°C (-31°F to 140°F)

* Wide voltage range of ±25%

* IP67

 IPC2121SR3-PF36IPC2121SR3-PF60IPC2121SR3-PF120
Camera
Sensor1/3", 1.3 megapixel, progressive scan, CMOS
Lens3.6mm@F1.8 6.0mm@F1.8 12.0mm@F1.8
Angle of View(H)72.9°46.7°23.5°
ShutterAuto/Manual, 1/6~1/100000 s
Min. IlluminationColour: 0.06 Lux (F1.8, AGC ON)
0 Lux with IR on
IR RangeUp to 30m (98 ft) IR range
Day/NightIR-cut filter with auto switch (ICR)
S/N>50dB
WDRDigital
Noise Reduction2D/3D
Video
Max. Resolution1280×960
Video CompressionH.264/MJPEG
Frame Rate960P (1280*960): Max. 30 fps; 720P (1280*720): Max. 10 fps;
960P (1280*960): Max. 25 fps; 720P (1280*720): Max. 15 fps; D1 (720*576): Max. 6 fps
Video StreamingTriple
ROISupported
Evaluative MeteringSupported
OSDUp to 8 OSDs
Motion DetectionUp to 2 areas
Privacy MaskUp to 4 areas
Network
ProtocolsL2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP
Compatible IntegrationONVIF, API
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
General
Power12 V DC, or PoE (IEEE802.3 af)
Power consumption: Max 6.4 W
Dimensions (L × W × H)157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight0.45 kg (0.99 lb)
Working Environment-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress ProtectionIP67
