IPC542E(-NL)-IN

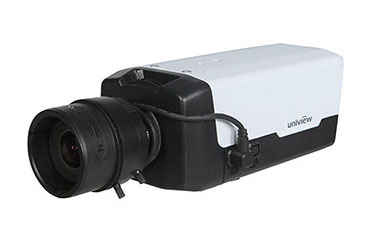

2MP Low-light Network Box Camera

IPC542E(-NL)-IN

2MP Low-light Network Box Camera

Optics

* Day/night functionality

* Lowlight surveillance

* 3D DNR (Digital Noise Reduction)

Compression

* H.264 High Profile

* Triple streams

* ROI (Region of Interest)

* 9:16 corridor mode

* Customized OSD

Network

* NAA (Network Auto-Adaptability) to cope with up to 5% network packet loss

* Optional network interfaces with Ethernet RJ45 and optical SFP

* UNP(Universal Network Passport) patented technology for NAT traversal

* Dual direct-to-iSCSI data block storage

* ONVIF Conformance

Structure

* AC 24V /DC 12 V/PoE with uninterruptible power supply

* Wide temperature range: -20°C to 60°C (-4°F to 140°F)

* Wide voltage range of ±25%

* 6 KV surge protection designed for network interface

 IPC542E-INIPC542E-NL-IN
Camera
Sensor1/2.8", 2Megapixel, progressive scan, low illumination CMOS
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1/6~1/8000 s
Min. IlluminationColor: 0.03 Lux (F1.2, 50IRE)
Black & White: 0.01 Lux (F1.2, 50IRE)

S/N>52dB
Image RotationSupport
Lens MountC/CS
DC-IrisDC 4V (4 Pins)
Motor Zoom/focusDC 5V (4 Pins)
Video
Max. Resolution1920 × 1080
Video CompressionH.264,MJPEG
Frame Rate1080P (1920*1080) 30 fps; 720P (1280*720) 60 fps; D1 (720*576) 25 fps
9:16 Corridor ModeSupport
ROISupport
Video StreamingTriple
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
Audio
Audio CompressionG.711
Two-way TalkingSupport
Storage
Edge StorageSD, up to 32 GB
Back-end StorageDual direct-to-iSCSI data block storage
Cache Post RecordingSupport
Network
ProtocolsL2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,Qos,NTP,FTP,HTTP,SNMP,SIP
Compatible IntegrationONVIF, IMOS,API
Interface
Audio I/O3.5 mm audio interface
Input: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O2 / 1
Serial Port1 RS485 (support Pelco-D/P)
Network10M/100M Base-TX Ethernet100M Base-FX SFP +10M/100M Base-TX Ethernet
Video Output1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
General
Power24 V AC, 12 V DC, or PoE (IEEE802.3 af)
Power consumption: 4.8 W (with ICR switch: extra 2W)
Dimensions (L x W x H)151.5 x 71 x 65 mm (6.0“ x 2.8“ x 2.6”) (excluding the lens)
Weight0.48 kg (1.1 lb)
Working Environment–20°C ~ +60°C (-4°F ~ 140°F), Humidity ≤ 90% RH(non-condensing)
