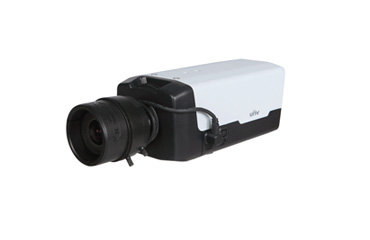

IPC541E-DLC
1.3MP WDR Low-light Network Box Camera

    Optics

    *           Day/night functionality

    *           Lowlight surveillance

    *           3D DNR(Digital Noise Reduction)

    *           Up to 120dB WDR(Wide Dynamic Range)

    Compression

    *           Triple streams

    *           ROI (Region of Interest)

    *           9:16 corridor mode

    *           Customized OSD

    Network

    *           ONVIF Conformance

    Structure

    *           AC 24V /DC 12 V/PoE with uninterruptible power supply

    *           Wide temperature range: -20°C to 60°C (-4°F to 140°F)

    *           6 KV surge protection designed for network interface





    IPC541E-DLC

    Camera

    Sensor

    1/3", 1.3 megapixel, progressive scan CMOS

    Shutter

    Auto/Manual, 1/6~1/8000 s

    Min. Illumination

    Colour: 0.02 Lux (F1.2, 50IRE)

    0 Lux with IR

    Lens Mount

    C/CS

    DC-Iris

    DC 4V (4 Pins)

    Motor Zoom/focus

    DC 5V (4 Pins)

    Day/Night

    IR-cut filter with auto switch (ICR)

    S/N

    >50dB

    WDR

    120 dB

    Video

    Max. Resolution

    1280 × 960

    Video Compression

    H.264, MPEG

    Frame Rate

    960P (1280*960) 30 fps; 720P (1280*720) 30 fps; D1 (720*576) 25 fps

    Video Streaming

    Triple

    9:16 Corridor Mode

    Supported

    ROI

    Supported

    Defog

    Digital

    HLC

    Supported

    OSD

    Up to 8 OSDs

    Privacy Mask

    Up to 4 areas

    Network

    Protocols

    L2TP, IPv4, IGMP,ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP,  802.1x

    Compatible Integration

    ONVIF, API

    Interface

    Audio I/O

    Audio cable

    1 Input: impedance 35 kΩ; amplitude 2 V [p-p]

    1 Output: impedance 600 Ω; amplitude 2 V [p-p]

    Alarm I/O

    2 / 1

    Serial Port

    1 RS485 (support Pelco-D/P)

    Network

    10M/100M Base-TX Ethernet

    Video Output

    1 BNC, impedance 75 Ω; amplitude 1 V [p-p]

    General

    Power

    24 V AC, 12 V DC, or PoE (IEEE802.3 af)

    Power consumption: 4.8 W (6.8W with ICR on)

    Dimensions (L × W × H)

    151.5 x 71 x 65 mm (6.0“ x 2.8“ x 2.6”) (excluding the lens)

    Weight

    0.48 kg (1.1 lb)

    Working Environment

    –20°C ~ +60°C (-4°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
