UTP Category 6 Cables

UTP Category 6 Cables

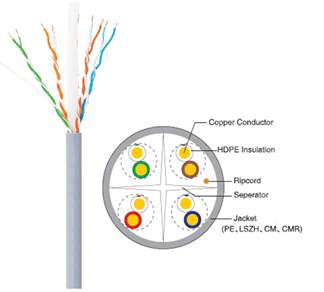

    Content of Data Sheet
    Product modelCAB-LC3100A-IN
    Product specificationHSYV-6 4×2×0.57
    Test StandardISO/IEC 11801,TIA/EIA 568B.2
    ConductorMaterialSolid-Bare Copper
    AWG23
    Nom.O.D.(mm)0.57±0.005 mm
    DC resistance≤95 Ω/km
    InsulationMaterialHDPE
    Thickness0.2±0.02 mm
    Diameter1.02±0.05 mm
    ColorBlue/White- BlueGreen/White-Green
    Electrical Characteristics:
    FrequencyCharacteristic impedanceRLATTNEXT
    MHzohm≥dB/100m≤dB/100m≥dB/100m
    1100±1520.02.074.3
    4100±1523.03.865.3
    10100±1525.06.059.3
    16100±1525.07.656.2
    20100±1525.08.554.8
    31.25100±1523.610.751.9
    62.5100±1521.515.447.4
    100100±1520.119.844.3
    155100±1518.924.741.7
    200100±1518.029.039.8
    250100±1517.332.838.3

    FrequencyFEXTPS NEXTPS FEXTPhase delay
    MHz≥dB/100m≥dB/100m≥dB/100m≤ns/100m
    163.872.364.8570.0
    451.763.357.7552.0
    1043.857.344.8545.4
    1639.754.340.7543.0
    2037.752.838.7542.0
    31.2533.949.934.9540.4
    62.527.845.428.8538.6
    10023.842.324.8537.4
    15020.239.420.9536.0
    20017.737.818.7536.0
    25015.836.316.8536.0
    Orange /White-OrangeBrown/White-Brown
    PitchOffset pitch≤20 mm
    Cable pitch≤120 mm
    SheathMaterialPVC(complies RoHS/REAC)
    External O.D.6.2±0.3 mm
    ColorBlue(RAL5015)
    Tensile strength>13.5 Mpa
    Thickness0.6±0.05 mm
    Surface PrintingLetter height3.0±0.3 mm
    ColorBlack
    Print error & Space 1±0.005 m
    Case numberYes
    PackingPackingCarton
    Once packing dimension420mm*205mm*420mm
    Twice packing dimension450mm*440mm*445mm
    Twice packing quantity2 cases
    Packing length305±1m
    Rip-cordYesCrossing backboneYes
    Ambient temperature-20℃~60℃
